We’re expanding our Wireless Portfolio to Include a REM Only Portion

In 2023 we released the AWRC, a new combination wireless REM and audiometer unit that maximized what your equipment is capable of. Now, the Wireless REM offers the same advanced real ear and live speech mapping technology with wireless capabilities for practitioners who already have a preferred audiometer.

As with most MedRx products, the Wireless REM is 100% computer-based, ideal for a desktop or a laptop. Our real ear and live speech mapping modules within our Studio software are included with each Wireless REM unit and were intentionally engineered for simple, straightforward navigation and functionality.

Read the WREM Blog Post >

Features:

• Wireless Binaural Real Ear Measurements and Live Speech Mapping System

• REM AutoFit Compatible

• The REM Software includes targets for MSS (Modified Speech Spectrum), DSL v5.0, NAL-NL1 and NAL-NL2

• HLS (Hearing Loss Simulator) & MHA (Master Hearing Aid) for 3rd Party Demonstration

• PC-Powered with USB-C Connection and Set-up

• Noah, TIMS®, Blueprint OMS and Sycle Compatible

Downloads

Download the WREM Manuals, Data Sheets, Computer Specs, etc. here in PDF format

Advertising

• WREM Data Sheet (INT)
• WREM Data Sheet (US)
• MedRx Hearing Healthcare Catalog (INT)
• MedRx Hearing Healthcare Catalog (US)

Manuals

• WREM Installation Manual Rev E (INT)
• WREM Installation Manual Rev E (US)
• WREM Training Manual Rev G (INT)
• WREM Training Manual Rev H (US)

Accessories, etc.

• Options & Accessories
• Computer Requirements
• Probe Tube Insertion Guide

Standards:
IEC 60601-1 Class II
IEC 60601-1-2 Class A
IEC 60645-1
Medical Device Regulation

REM Standards: ANSI S3.46, IEC 61669, EN 61669

Dimensions: Approx. 18 cm x 6 cm x 5 cm (L x W x H) Approx. 7″ x 2″ x 1.5″ (L x W x H).

Weight: < 500 g < 1 lb

System Modality: Real Ear Measurement; Binaural Live Speech Mapping; Hearing Loss Simulator; Hearing Instrument Simulator.

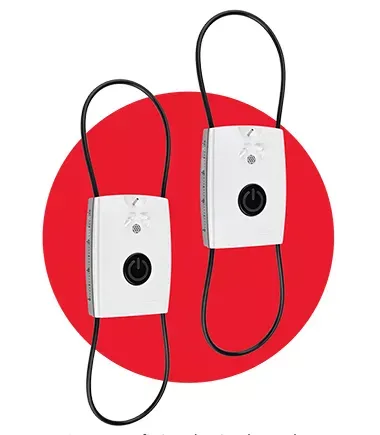

Probe Microphones (L/R): Dual Electret Microphone Elements (2 Probe Microphones)

Probe Microphone Tube: Silicone 1.0 mm Nominal Diameter

Measurement Frequency Range: 125 – 12500 Hz

Test Stimuli: Broadband Noise and Synthesized Random Noise – Pink, White, Byrne LTASS and ANSI weighted; ICRA; ISTS; Microphone, File, CD-ROM for Live Speech Mapping, Chirp

Test Stimulus Levels at 1m: 45 – 90 dB SPL in 1 dB Steps – 200 Hz thru 12500 Hz (depending on speaker wattage & efficiency)

Test Stimulus Accuracy: ± 3 dB SPL

Analysis Mode: User Selectable 1/3, 1/6, 1/12, 1/24, 1/48 Octave Bands

ANSI S3.46 Test Available IEC/EN 61669: Real Ear Unaided Response, Real Ear Unaided Gain; Real Ear Insertion Gain; Real Ear Occluded Response; Real Ear Occluded Gain; Real Ear Aided Response; Real Ear Aided Gain

Other Test Available: Live Speech Mapping with Peaks and LTASS analysis; Real Ear to Coupler Difference, Occlusion Effect, Percentile Analysis

Prescription Methods: NAL-RP; 1/3 Gain; 1/2 Gain; Berger; Pogo 1; Pogo 2; FIG6; DSL m[I/O] NAL-NL1; NAL-NL2

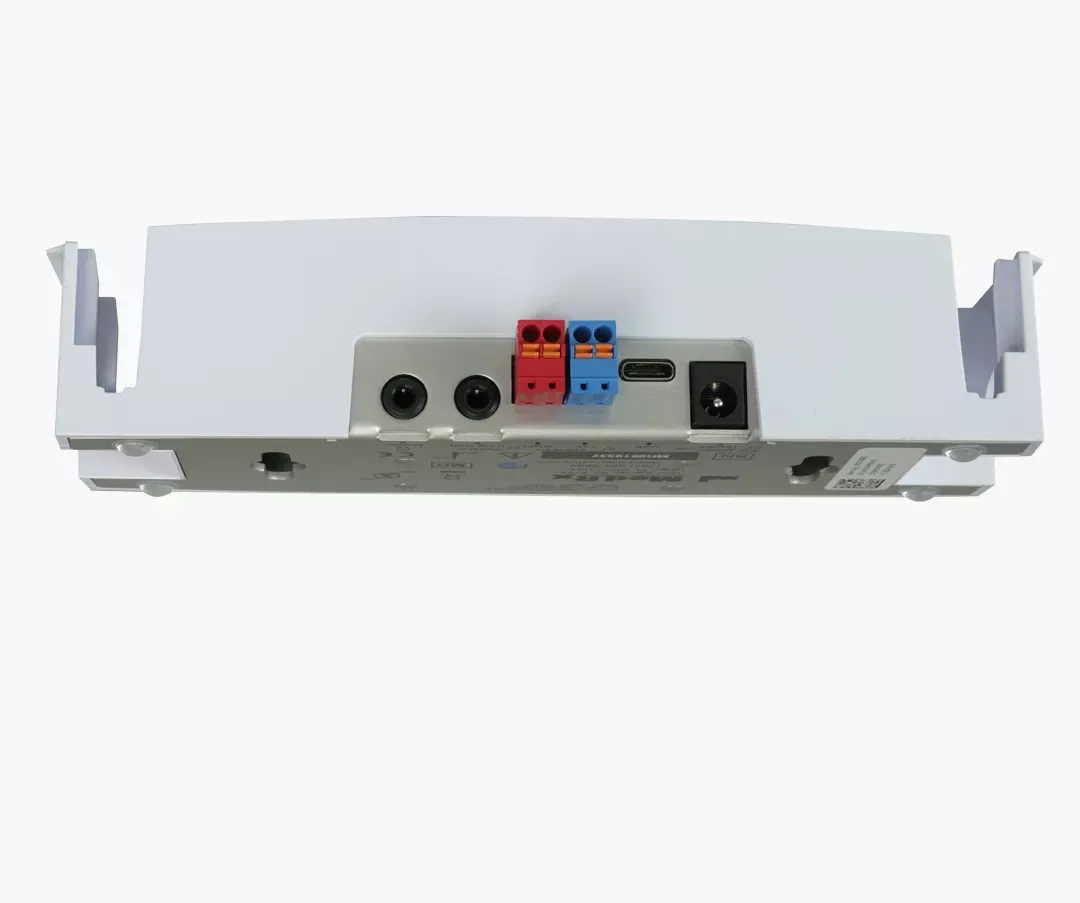

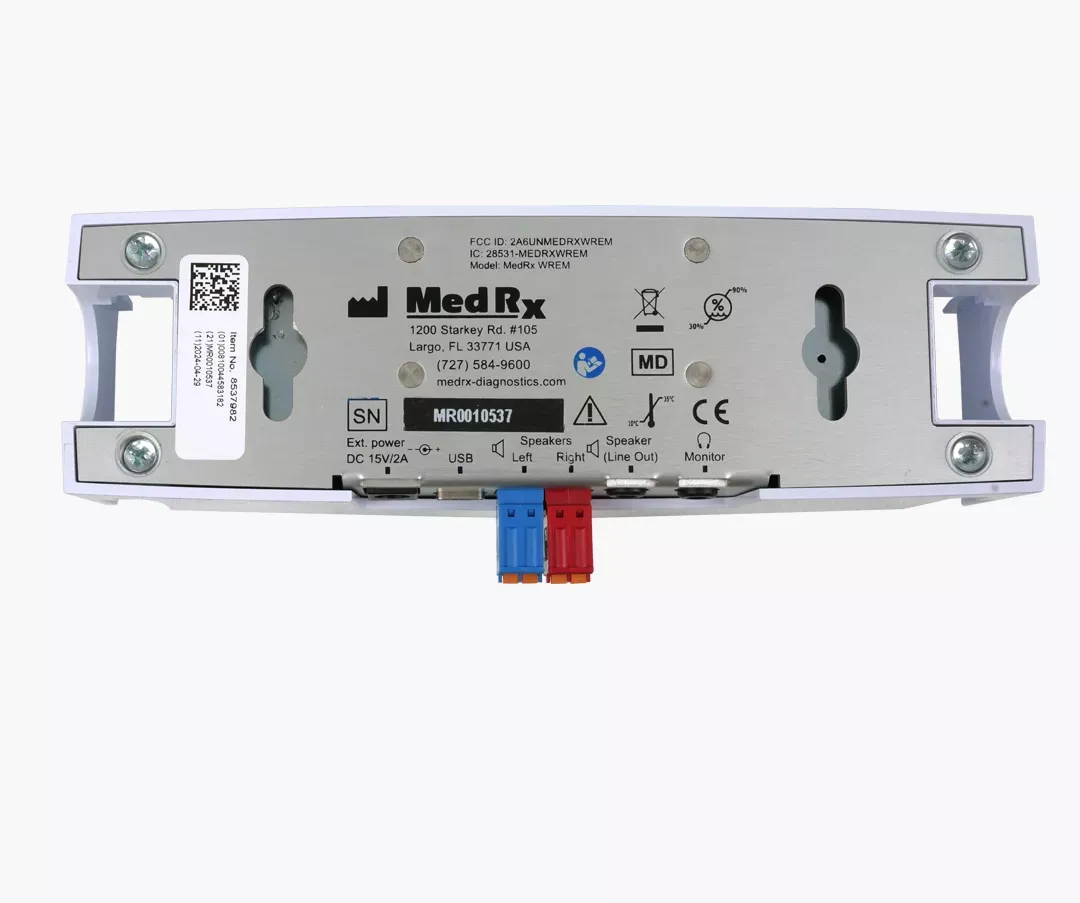

External Connections: Power Connection USB 3.0 Input 5.0 Volt Bus; Line-Output Jack (Speakers) 3.5 mm Stereo Jack; Speaker Output (Internal Amplifier) (2) 3.81mm Pluggable Spring Clamp; Monitor Headset Jack 3.5 mm Stereo Jack; Power Jack 2.1 mm
X 5.5 mm.

Data Connection: USB

Mode of Operation: Continuous

Warm up Time: Less than 5 min after USB connection

Power Connection: USB 3.0 Input 5.0 Volt Bus

USB 3.0 Input: Standard USB “C” Socket

Power Consumption:
Less than 1800 mA at 15 VDC / less than 900
mA at 5 VDC

Optional Powered Speakers: 120V, 60 Hz or 100V – 240V, 50/60 Hz available

Operating Temperature: 10°C to 35°C

Operating Humidity: 30% to 90%

Storage Temperature: -20°C to 50°C

Storage Humidity: 10% to 90%
