The REM software offers an intuitive user interface for data collection, patient monitoring and counseling. In addition to Live Speech Mapping, the software supports all traditional Real Ear Measurements and includes targets for MSS (Modified Speech Spectrum), DSL v5.0, NAL-NL1 and NAL-NL2. Includes HLS (Hearing Loss Simulator) and MHA (Master Hearing Aid) Modules.

Features:

• Binaural Real Ear Measurements and Live Speech Mapping System

• REM AutoFit Compatible

• The AVANT REM Software includes targets for MSS (Modified Speech Spectrum), DSL v5.0, NAL-NL1 and NAL-NL2

• HLS (Hearing Loss Simulator) & MHA (Master Hearing Aid) for 3rd Party Demonstration

• PC-based and Portable

• HID Device - True Plug and Play

• USB Connection to Computer

• Noah, TIMS®, Blueprint OMS and Sycle Compatible

Downloads

Download the REM+ Manuals, Data Sheets, Computer Specs, etc. here in PDF format

Advertising

• REM Data Sheet (INT)
• REM Data Sheet (US)
• MedRx Hearing Healthcare Catalog (INT)
• MedRx Hearing Healthcare Catalog (US)

Manuals

• REM+ Installation Manual Rev E (INT)
• REM+ Installation Manual Rev E (US)
• REM+ Training Manual Rev G (INT)
• REM+ Training Manual Rev H (US)
• RECD Guide (INT)
• RECD Guide (US)

Accessories, etc.

• Options & Accessories
• Computer Requirements
• Loading Calibration Instructions
• Probe Mic Placement Picture
• Probe Tube Insertion Guide
• Probe Tube Placement Picture

Standards:
ANSI S3.46, IEC 61669, EN 61669

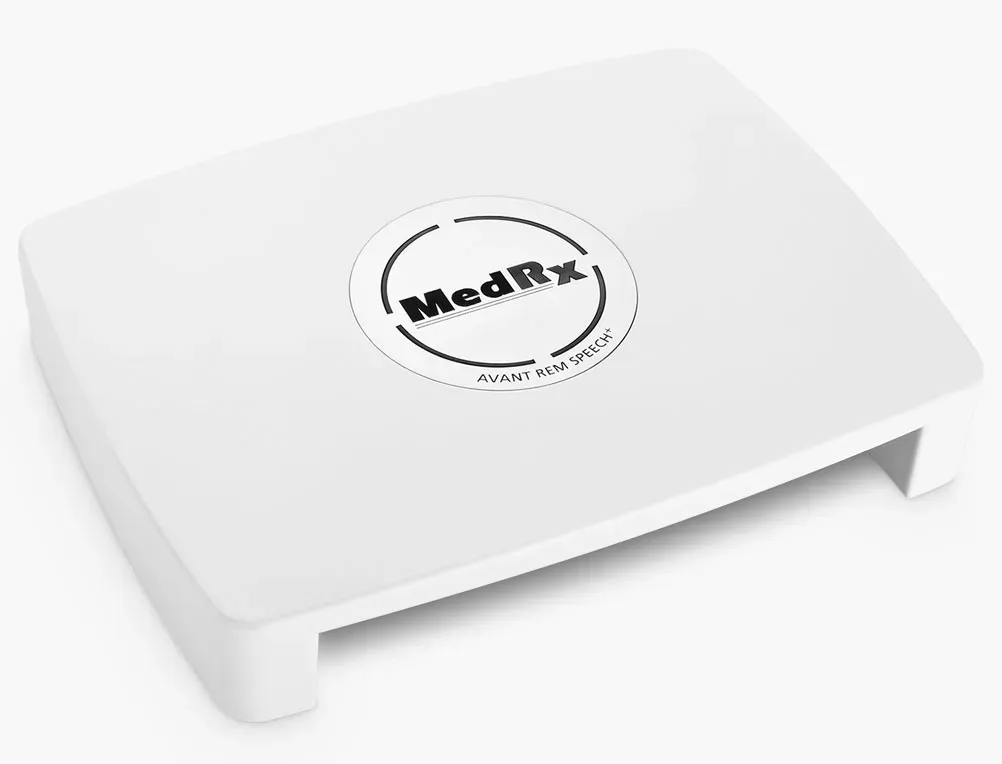

Dimensions:
Approx. 16 cm x 12 cm x 3 cm (L x W x H)
Approx. 6.5″ x 5″ x 1.25″ (L x W x H)

Weight: < 500 g <1 lb

System Modality:
Real Ear Measurement; Binaural Live Speech Mapping; Hearing Loss Simulator; Hearing Instrument Simulator.

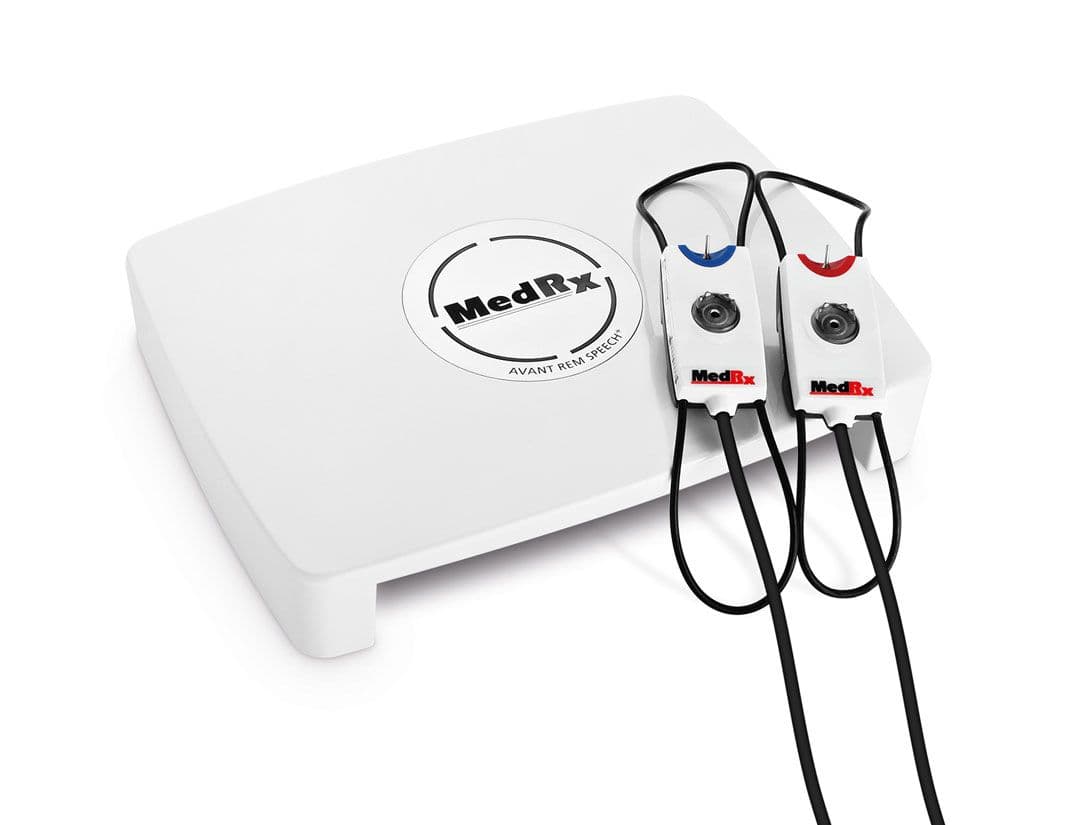

Probe Microphones (L/R):
Dual Electret Microphone Elements (2 Probe Microphones)

Probe Microphone Tube:
Silicone 1.0 mm Nominal Diameter

Measurement Frequency Range:
125 – 12500 Hz

Test Stimuli:
Broadband Noise and Synthesized Random Noise – Pink, White, Byrne LTASS and ANSI weighted; ICRA; ISTS; Microphone, File, CD-ROM for Live Speech Mapping , Chirp

Test Stimulus Levels at 1m:
45 – 90 dB SPL in 1 dB Steps – 200 Hz thru 8K Hz (depending on speaker wattage & efficiency)

Test Stimulus Accuracy: ± 3 dB SPL

Analysis Mode: User Selectable 1/3, 1/6, 1/12, 1/24, 1/48 Octave Bands

ANSI S3.46 Test Available IEC/EN 61669
Real Ear Unaided Response, Real Ear Unaided Gain; Real Ear Insertion Gain; Real Ear Occluded Response; Real Ear Occluded Gain; Real Ear Aided Response; Real Ear Aided Gain

Other Test Available: Live Speech Mapping with Peaks and LTASS analysis; Real Ear to Coupler Difference, Occlusion Effect, Percentile Analysis

Prescription Methods: NAL-RP; 1/3 Gain; 1/2 Gain; Berger; Pogo 1; Pogo 2; FIG6; DSL m[I/O] NAL-NL1; NAL-NL2

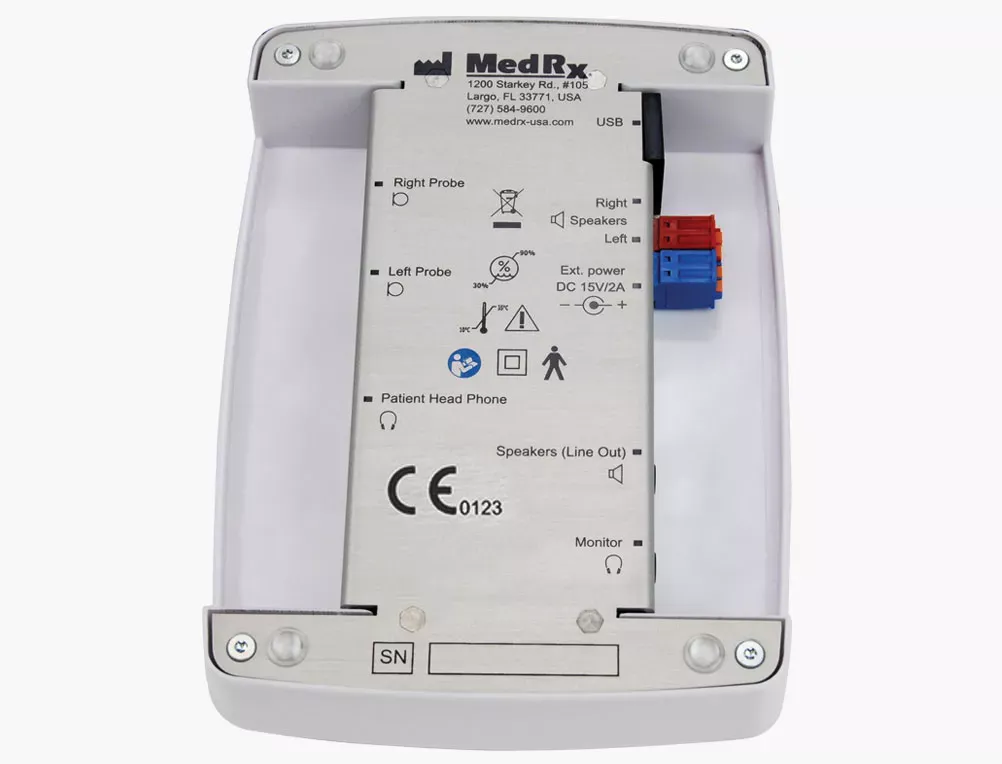

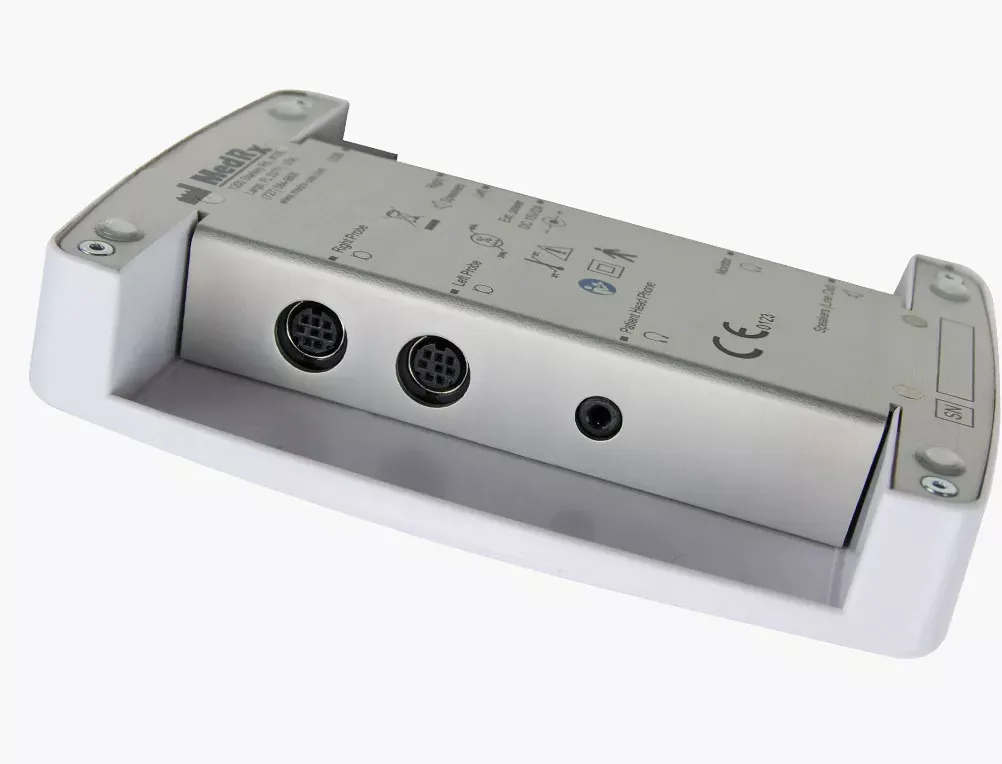

External Connections: Power Connection USB 2.0 Input 5.0 Volt Bus; Line-Output Jack (Speakers) 3.5 mm Stereo Jack; Speaker Output (Internal Amplifier) (2) 3.81mm Pluggable Spring Clamp; Probe Microphones Inputs (2) 8 Pin Mini-DIN; Operator Headset Jack 3.5 mm Stereo Jack; Patient Headset Jack 3.5 mm Stereo Jack; Power Jack 2.1 mm X 5.5 mm.

Hearing Loss Simulator and Hearing Instrument Simulator: Software Based Sound. Equalization With Available Live Speech Mapping Functionality

Data Connection: USB

Mode of Operation: Continuous

Warm up Time: Less than 5 min after USB connection

Power Supply: 100 - 240 V~ 50/60 Hz ±10 % producing 15 VDC, USB: 5 VDC

Power Consumption: Less than 500 mA at 15 VDC / less than 500mA at 5 VDC

Operating Temperature: 10°C to 35°C

Operating Humidity: 30% to 90%

Storage Temperature: -20°C to 50°C

Storage Humidity: 10% to 90%
